Auto-Import Entra ID (Active Directory) Contacts to Digital Business Cards

Auto-Import Entra ID (Active Directory) Contacts to Digital Business Cards

book reader icon
5 Minutes
facebook logo gray
linkedin logo gray
mail logo gray

This article will guide you how to import contacts from your Microsoft Entra ID (Active Directory) and to create Digital Business Cards for them in bulk.

This post contains technical details for your IT department managing Microsoft Azure Entra ID (Active Directory). Please get in touch with an IT expert on your end to help you in setting up everything. Please make sure that the person who is doing the configuration on Microsoft Azure has the necessary Administrator permissions.

What is a Digital Business Card?

A Digital Business Card is a Landing Page containing a person's or legal entity's contact data and business information. In addition, you can also embed a YouTube video or link your social media accounts like LinkedIn or Instagram.

You can quickly and easily share your Digital Business Card with a QR
Code from your Apple or Google Wallet, so current and future business partners may directly save contacts on their devices.

How the Integration with Active Directory/Entra ID works

To integrate your Microsoft Azure Active Directory/Entra ID with our QR Code Platform we use a connector to exchange information between your system and our system. We just need a couple of access credentials to be able to retrieve the needed data from your Entra ID.

How to Auto-Import Entra ID Contacts to Digital Business Cards

1. Create Enterprise Application in Entra ID

In order to set up your Active Directory/Entra ID you need to do 2 steps. First, create an Enterprise Application and second Grant API Permissions for that Enterprise Application. Lets start with the first step.

To connect our QR Code Platform to your Active Directory/Entra ID you need to create a so-called Enterprise Application. This Enterprise Application is a representation of our QR Code Platform in your Microsoft Azure Account.

First, make sure that you are logged into your Microsoft Azure Account. You can reach the Microsoft Azure Portal via portal.azure.com.

Next, open the Entra ID Service. You can find the Service with a search in the search bar by typing "Microsoft Entra ID".

Open the Microsoft Entra ID service
Open the Microsoft Entra ID service

In the Microsoft Entra ID service click on the menu Enterprise Applications in the section Manage (on the left side).

Go to Enterprise applications
Go to Enterprise applications

To create a new Enterprise Application click on New application.

click on New application
click on New application

Click on Create your own application.

Click on Create your own application
Click on Create your own application

Enter a name (we will use QR Code Platform in our example) for the application and choose option 3 (Non-gallery). Then click on Create.

Enter a name for the application and choose option 3 (Non-gallery)
Enter a name for the application and choose option 3 (Non-gallery)

Now we have to go into the App Overview. In order to get there we have to enter into the Entra ID Service once again.

Click in the top right of the screen either on Home or on Microsoft Azure - both should work. You will land on the Azure Homepage.

Click on Home OR on Microsoft Azure
Click on Home OR on Microsoft Azure

Now open the Entra ID service again. You can find the Service with a search in the search bar by typing "Microsoft Entra ID".

Open the Microsoft Entra ID service
Open the Microsoft Entra ID service

In the left menu of Entra ID open the submenu Manage and then choose App registrations. Then click above the list on All applications and then choose in the list the App that you just created - in our case thats QR Code Platform.

Go to Manager > App registrations, choose All applications and click on the App you just created
Go to Manager > App registrations, choose All applications and click on the App you just created

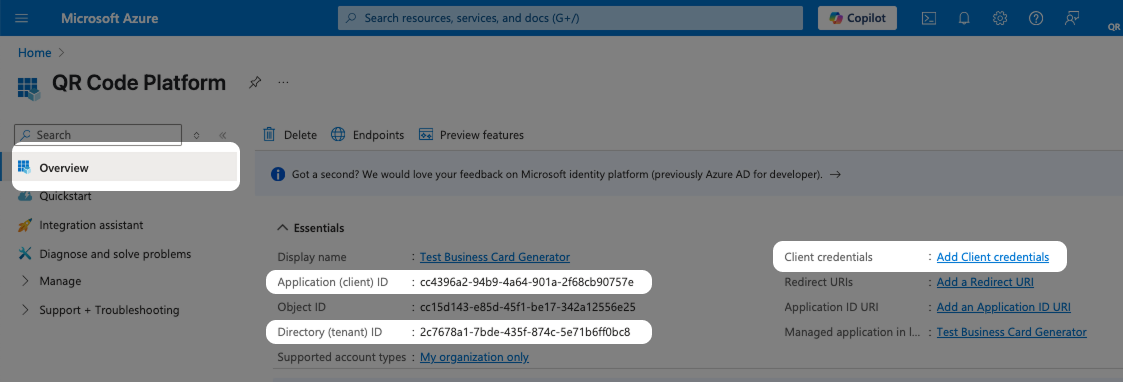

On the Overview area of the new application copy the Application (client) ID, and paste it into a word document and note next to it that this is the Client Id, then click on Add Client credentials.

Click on Add Client credentials
Click on Add Client credentials

Click on New client secret.

Click on New client secret
Click on New client secret

Enter a Description for the client secret like Digital Business Card and click on the Add button. Choose the expiration date of the secret depending on if and when you want to use the Auto-Import feature again in the future - default is 180 days. If you just need it today you can choose a shorter timeframe.

Enter a description and click on the button Add
Enter a description and click on the button Add

Copy the code from the Value column (NOT the Secret ID column) into a word document and write Client Secret Value next to it so you know later which value it is. We will need them later.

Copy the Value as Client Secret Value
Copy the Value as Client Secret Value

2. Grant API Permissions in Entra ID

Now its time to grant API permissions to our just created app. On the left menu sidebar click on the menu API permissions and then on Add a permission.

Click on the menu API permissions and then on the button Add a permission.
Click on the menu API permissions and then on the button Add a permission.

Then choose Microsoft Graph with type Application permissions and on the screen search and add the following permissions: User.Read.All and Directory.Read.All. Make sure that the permission is checked in the list.

Choose Microsoft Graph and then add User.Read.All and Directory.Read.All permissions.
Choose Microsoft Graph and then add User.Read.All and Directory.Read.All permissions.

Now its necessary that a user with admin privileges grants his consent via clicking on the button Grant admin consent for Your Company.

Make sure a user with admin privileges grants the API permissions by clicking on Grant admin consent
Choose Microsoft Graph and then add User.Read.All and Directory.Read.All permissions.

Now Entra ID is ready for the data to be fetched.

3. Importing the Contacts as Digital Business Card

Login

Now its time to switch over to the QR Code Platform to import the contacts and automatically generate Digital Business Cards for them. Head to our website and login to your QR Code Platform .

Login

Login
Login Form

Once logged in go to Import and choose Import Contacts.

Go to Import and choose Import Contacts
Go to Import and choose Import Contacts

On the next screen choose Entra ID Import.

Choose Entra ID Import
Choose Entra ID Import

Connect to Entra ID

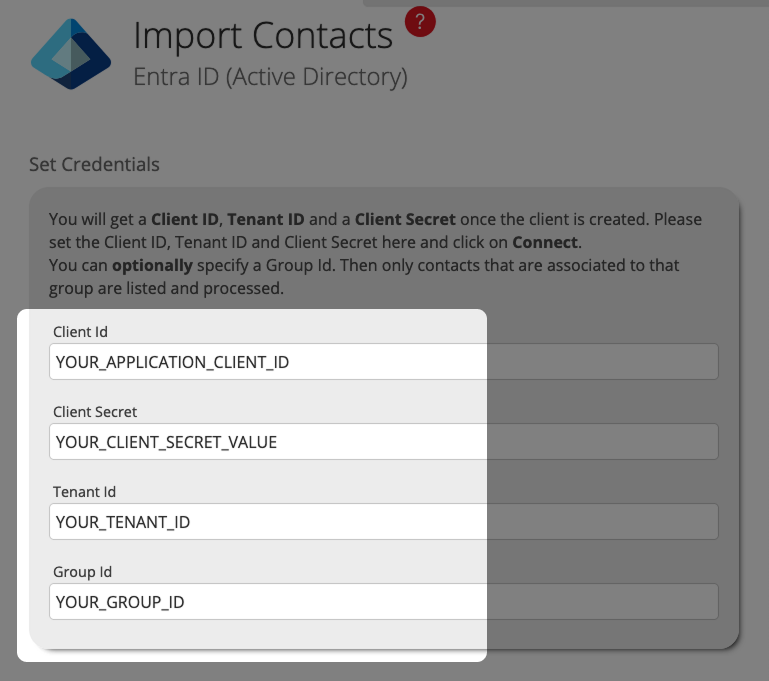

Then its time to enter the Client ID and Client Secret. Use the copied values from before. For the Client ID use the value from "Application (client) ID" and for the Client Secret use the value from the "Value" column from before that you saved into your word document as Client Secret Value.

Paste the Client Id and Client Secret from before
Paste the Client Id and Client Secret from before

Before you click on Connect you have to decide how you want to import the contacts from Entra ID.

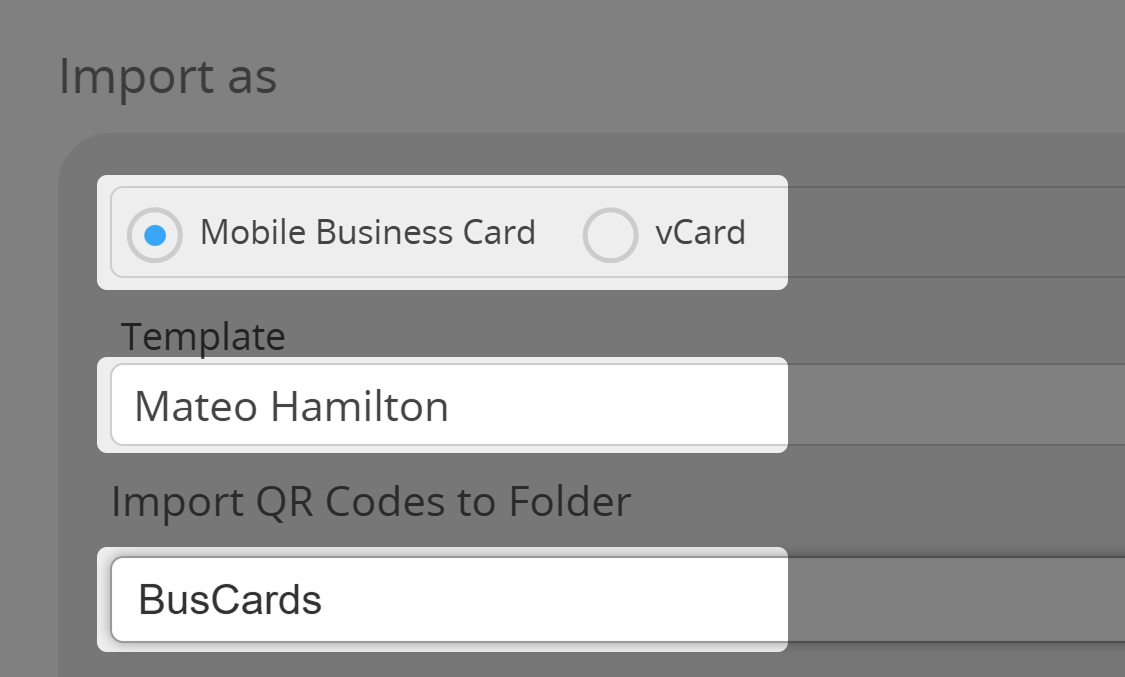

Select the folder you want the contacts to be imported to. Then specify if you want to import the contacts as a Mobile Business Card or a vCard

Last but not least you can also specify a Template that should be used for the new cards. If you specify a template then the design and logo from the template is going to be used for the created business card.

Select Mobile Business Card or vCard and the Folder to import to
Select Mobile Business Card or vCard and the Folder to import to

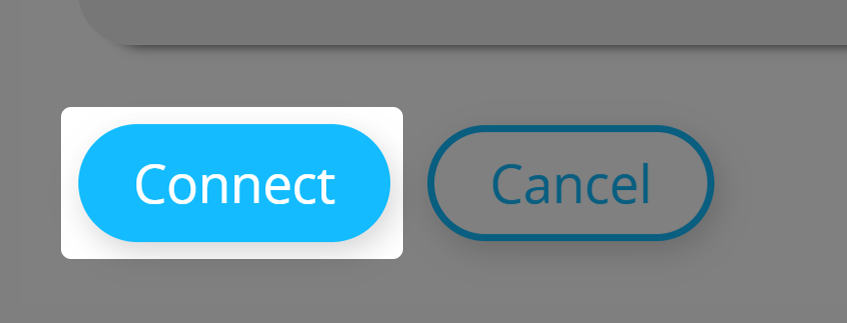

Then click on the Connect button to start the processing.

The system will first check if the provided credentials are working and then load the contacts into a list where you can decide which of them you want to actually import.

Filter the Contacts you want to import

On the following screen you see the available contacts. Use the last column Import? and check the checkbox next to the contacts you want to import and click on the button Import.

Select the contacts you want to import and then click on the button Import
Select the contacts you want to import and then click on the button Import

Next you will see a success message at the top of the screen with a status of how many got created, updated or needed to be skipped.

Success message
Success message

You will now find the imported entries in the selected folder. Congratulations, you've successfully auto-imported contacts from Entra ID!

Imported Contacts
Imported Contacts
